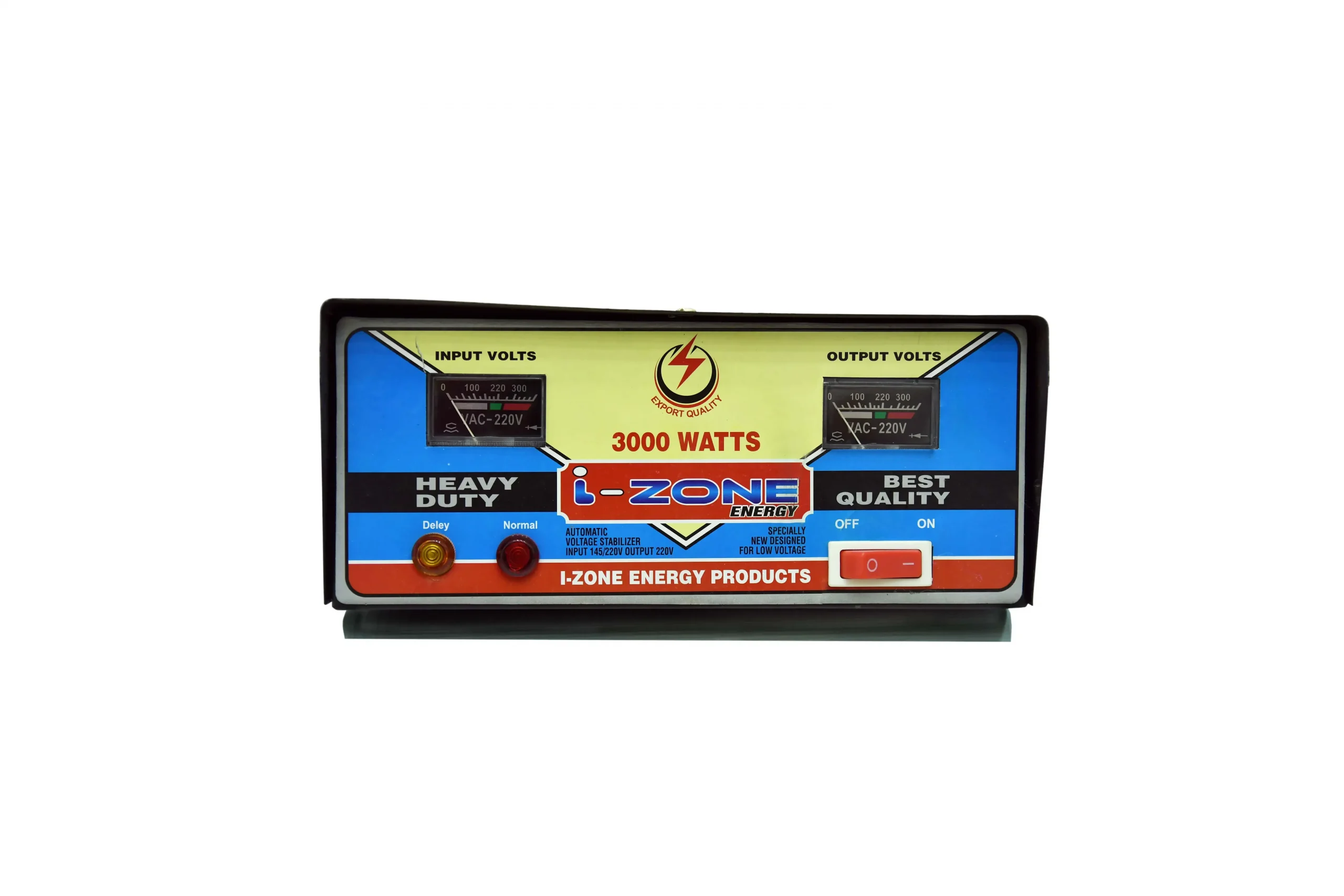

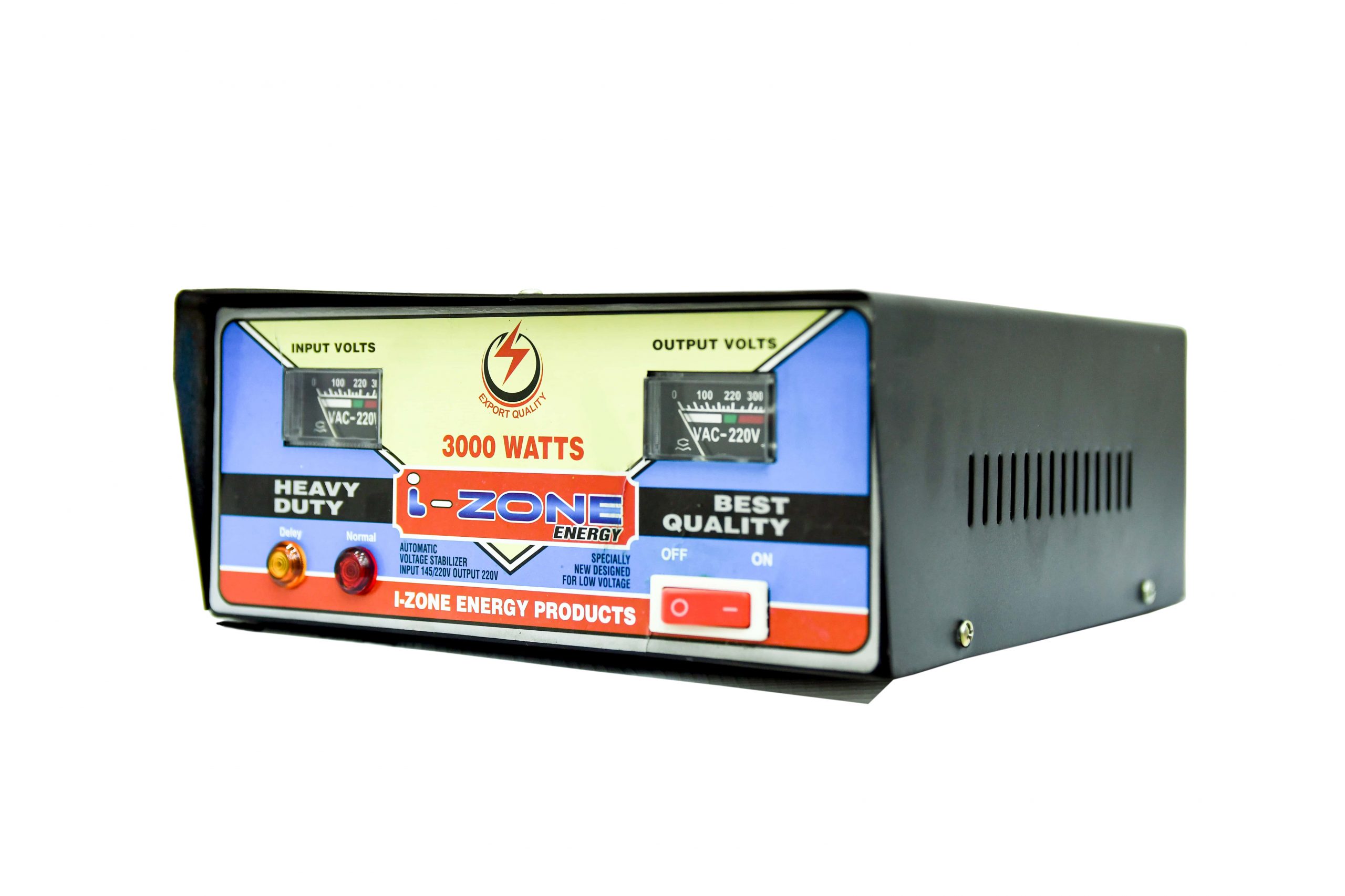

IZONE STABLIZER A30

 11,000

Features:

  • AMR-A30 SOLO
  • Power 3000 W
  • Copper Winding
  • LED indicators Function
  • Overload Protection System
  • Digital Display System
  • Low & High Voltage Protection function

What is a IZONE STABLIZER A30? Why should I install one?

A IZONE STABLIZER A30 is a Servo motor controlled stabilization system so that performs optimum voltage supply using a Buck\Boost Transformer. But booster that captures voltage fluctuations from input and regulates current to the correct output.

There are seven main components in a IZONE STABLIZER A30

1. Dimmer (Variable Transformer)

It is normally round in the shape. Silicon CRGO toroidal core is used for the base & copper wire with specific turn ratio according to the capacity is used. The basic purpose of dimmer is to increase or decrease the voltage which is fed to the buck boost transformer. 50% of the output voltage is increased or decreased by dimmer only.
Let us take an example: If the input voltage is 160V so the dimmer will increase it to 190V. Rest of the 30V (since 220V is required to run and any single phase load) will be done by Buck Boost Transformer.

2. Carbon Brush

So this is a moving part in IZONE STABLIZER A30 so it is fitted in the shaft to make the contact with dimmer. If the input voltage variation is very frequent but this carbon brush will erase early and customer has to replace it very frequently. That is why servo stabilizer manufacturers should use best quality carbon brush.

3. Servomotor (Synchronizing Motors)

Servomotor as the name suggests is the main part of IZONE STABLIZER A30. The motor rotates the arm connected on the dimmer in but clockwise or anti clockwise direction according to input voltage.

4. Buck Boost Transformer

Contrary to dimmer it is in rectangular shape. Bobin is fitted with EI CRGO core. When the transformer structure is built because it is dipped in varnish tank for extra protection. An AC synchronous motor adjusts voltage in clockwise or anticlockwise direction. Manages the output voltage with components like control card, dimmer, comparator and transistors.

Electric Volt
  • 3000 W
Functions
  • LED indicators Function, Low & High Voltage Protection function
Motor Material
  • 99.9% Copper Motor
Features
  • Overload Protection System, Digital Display System
